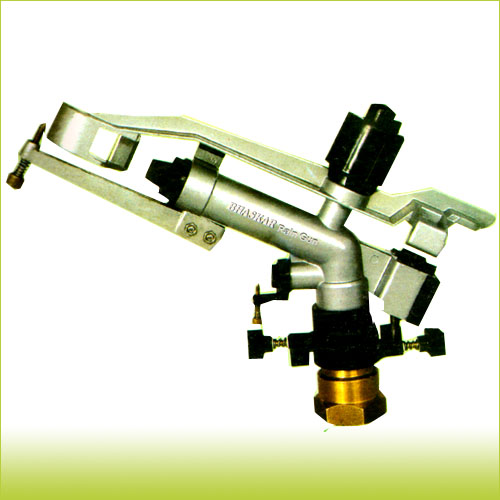

| METAL IMPACT RAIN GUN MODEL TA - 5 |
| |
| |
 |
| |
| ADVANTAGES : |
| |
|
 |
Portable & light weight – easy to handle. |
|
|
Chemically inert, and suitable to use liquid fertilizers and pesticides. |
| |
|
Strong, durable and cost effective. |
| |
|
Fittings are corrosion resistant. |
|
| |
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| APPLICATIONS : |
| |
|
|
Agriculture : Effective irrigation of cotton, soyabean, gram, groundnut, pulses, wheat etc |
|
|
Industrial : Controlling of dust pollution in cement industries and mining pits. |
| |
|
Others : Play Ground and Golf course maintenance,Land Decor and Beautification, Fish rearing |
|
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| FEATURES : |
| |
|
|
Available in 1-1/4" BSP/NPT Female threaded. |
|
|
Aluminium Pressure die casted Body and arm. |
| |
|
Heavy duty brass nut, tube, nozzles & Diffusor Screw. |
|
|
Stainless Steel Pivot Pin, springs, Nut and bolt . |
|
|
Plastic parts made of engineering plastic for durability . |
| |
|
Jet breaker screw to change the water jet from heavy droplets . |
|
|
To fine spray . |
|
|
Recommended pressure 2.0 - 5.0 kg/cm2 or 30 - 70 Psi. |
| |
|
Recommended spacing up to 30m for higher distribution uniformity. |
|
|
Trajectory Angle : 30 0 . |
|
| |
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| |
| SPECIFICATIONS : |
| |
| METAL IMPACT RAIN GUN MODEL TA - 5 |
| NOZZLE SIZE IN mm |
10x4 |
12x4 |
14x4 |
| PRESSURE AT SPRINKLER/HEAD |
DIAMETER OF COVERAGE IN METERS |
DISCHARGE IN LPM |
DISCHARGE OF COVERAGE IN METERS |
DISCHARGE IN LPM |
DISCHARGE OF COVERAGE IN METERS |
DISCHARGE IN LPM |
| 2 Kg/cm2 |
38 |
106 |
42 |
149 |
45 |
197 |
| 3 Kg/cm2 |
42 |
130 |
47 |
182 |
48 |
241 |
| 4 Kg/cm2 |
45 |
151 |
52 |
211 |
54 |
278 |
| 5 Kg/cm2 |
47 |
170 |
56 |
236 |
58 |
311 |
|
| |
NOTE :The Manufacturer reserve the right to
cancel, change the above specified models without any
notice. The Data provided in the website is to assist users to obtain best
performance. No warranty is expressed or implied, nor will any liability be accepted by the company for any consequence
occurred directly or indirectly from the use of such information. |
| |
 |
|
|
|
 |
| |
|
